PRODUCTS

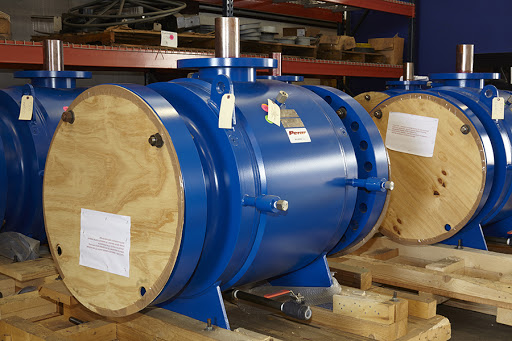

FULL WELDED BODY
TRUNNION MOUNTED BALL VALVES
API spec 6D Ball Valves, Trunnion supported ball, forged steel, welded body construction, double piston seats sealing system, anti-static device, anti-blow out proof stem, block and bleed, vent and drain fittings, self lubricating stem and trunnion bearings to assure low operating torque throughout entire valve life, fire safe design to BS 6755 parts 2 or API 6FA or API 607. Emergency sealing system at stem and seats area, if required. Safety relieve valve in case of cavity over pressure (suggested only with Liquid Hydrocarbon).

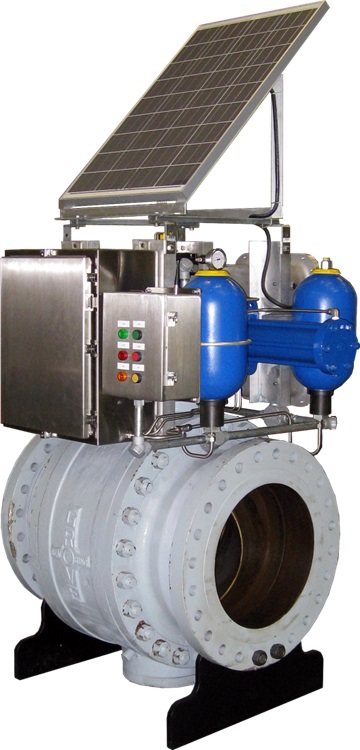

QUARTER-TURN SP
SELF CONTAINED VALVE ACTUATOR
Quarter-turn actuators, double acting, torque output to 6,000,000 in/lbs, power supply pressure up to 5,000 psi. Spring return actuators are also available.
LINEAR SP
SELF CONTAINED VALVE ACTUATOR
Linear actuators, double acting, thrust output to 600,000 lbs, linear motion range up to 72”, power supply pressure up to 5,000 psi
